产品名称：2BE1 303/305/306/353/355/356直联传动安装尺寸 |
| |
|
| |

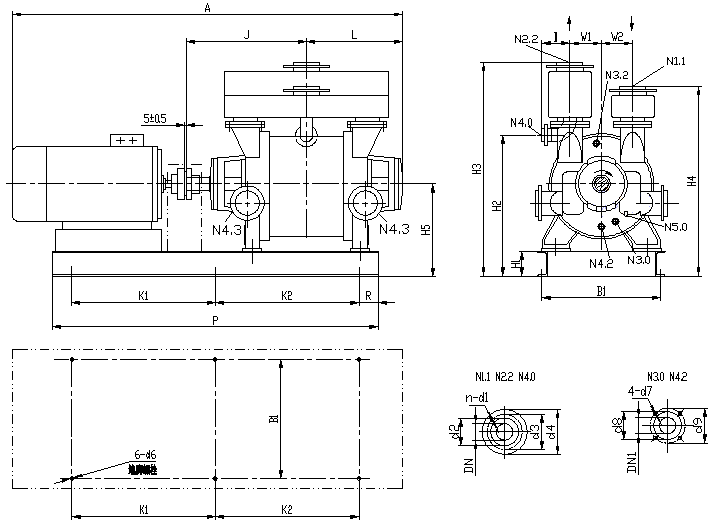

2BE1 303/305/306/353/355/356直联传动安装尺寸
 |
| |
N1.1连通管法兰 N2.2分离器法兰 N3.0工作液接口
N3.2填料函密封液接口 N4.0分离器排液口
N4.2冲洗、排液口 N4.3泄漏液排放口 N5.0自动溢流阀
|
代号 |
A |
B1 |
DN1 |
d6 |
d7 |
d8 |
d9 |
H2 |
H3 |
H4 |
H5 |
I |
J |
K1 |
K2 |
2BE1 303 |
2855 |
870 |
25 |
27 |
M12 |
68 |
85 |
1025 |
1560 |
1385 |
675 |
205 |
875 |
1050 |
1050 |
2BE1 305/306 |
3208 |
870 |
25 |
27 |
M12 |
68 |
85 |
1025 |
1560 |
1385 |
675 |
205 |
930 |
1225 |
1225 |
2BE1 353 |
3265 |
990 |
32 |
27 |
M12 |
78 |
100 |
1240 |
1880 |
1680 |
870 |
245 |
955 |
1185 |
1185 |
2BE1 355/356 |
3580 |
990 |
32 |
27 |
M12 |
78 |
100 |
1240 |
1880 |
1680 |
870 |
245 |
1025 |
1270 |
1270 |
代号 |
L |
P |
R |
W1 |
W2 |
N3.2 |
N4.3 |
|
|
|
|
|
|
|
|
2BE1 303 |
705 |
2380 |
140 |
230 |
230 |
G1/2" |
G1/2" |
|
|
|
|
|
|
|
|
2BE1 305/306 |
760 |
2750 |
150 |
230 |
230 |
G1/2" |
G1/2" |
|
|
|
|
|
|
|
|
2BE1 353 |
790 |
2670 |
150 |
285 |
285 |
G1/2" |
G1/2" |
|
|
|
|
|
|
|
|
2BE1 355/356 |
860 |
2840 |
150 |
285 |
285 |
G1/2" |
G1/2" |
|
|
|
|
|
|
|
|
代号 |
DN |
d1 |
d2 |
d3 |
d4 |
n |
代号 |
DN |
d1 |
d2 |
d3 |
d4 |
n |
2BE1 303
2BE1 305
2BE1 306 |
N1.1
N2.2 |
200 |
22 |
268 |
295 |
340 |
8 |
2BE1 353
2BE1 355
2BE1 356 |
N1.1
N2.2 |
250 |
22 |
320 |
350 |
395 |
12 |
N4.0 |
100 |
18 |
158 |
180 |
220 |
8 |
N4.0 |
125 |
18 |
188 |
210 |
250 |
8 |
|
|
