产品名称：2BE1 102/103/151/152/153泵头安装尺寸 |
| |
|
| |

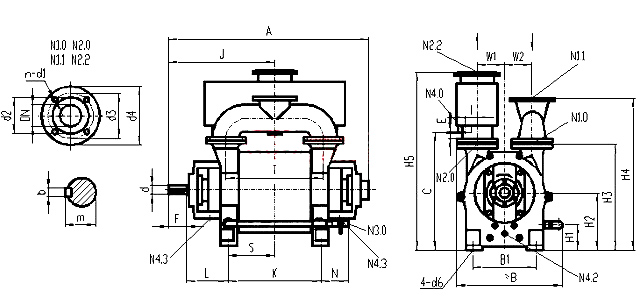

2BE1 102/103/151/152/153泵头安装尺寸
 |
| |
N1.0进气端法兰 N1.1连通管法兰 N2.0排气端法兰
N2.2分离器法兰 N3.0工作液接口 N4.0分离器排液口
N4.2冲洗、排液口 N4.3泄漏液排放口
|
代号 |
A |
B1 |
B |
b |
C |
d |
d6 |
E |
F |
H1 |
H2 |
H3 |
H4 |
H5 |
I |
2BE1 102 |
730 |
220 |
500 |
10 |
394 |
35 |
15 |
37 |
58 |
74 |
180 |
355 |
495 |
645 |
40 |
2BE1 103 |
795 |
220 |
500 |
10 |
394 |
35 |
15 |
37 |
58 |
74 |
180 |
355 |
495 |
645 |
40 |
2BE1 151 |
800 |
260 |
550 |
10 |
467 |
35 |
19 |
50 |
58 |
94 |
225 |
425 |
600 |
745 |
50 |
2BE1 152 |
825 |
260 |
550 |
10 |
467 |
35 |
19 |
50 |
58 |
94 |
225 |
425 |
600 |
745 |
50 |
2BE1 153 |
885 |
260 |
550 |
10 |
467 |
35 |
19 |
50 |
58 |
94 |
225 |
425 |
600 |
745 |
50 |
代号 |
J |
K |
L |
m |
N |
S |
T |
W1 |
W2 |
N3.0 |
N4.0 |
N4.2 |
N4.3 |
|
|
2BE1 102 |
377 |
251 |
193.5 |
38 |
145 |
125.5 |
262 |
105 |
105 |
G3/4" |
G2" |
G1/2" |
G1/4" |
|
|
2BE1 103 |
409.5 |
316 |
193.5 |
38 |
145 |
158 |
327 |
105 |
105 |
G3/4" |
G2" |
G1/2" |
G1/4" |
|
|
2BE1 151 |
411.5 |
295 |
206 |
38 |
145 |
147.5 |
307 |
125 |
125 |
G3/4" |
G2" |
G1/2" |
G1/4" |
|
|
2BE1 152 |
424 |
320 |
206 |
38 |
145 |
160 |
332 |
125 |
125 |
G3/4" |
G2" |
G1/2" |
G1/4" |
|
|
2BE1 153 |
454 |
380 |
206 |
38 |
145 |
190 |
392 |
125 |
125 |
G3/4" |
G2" |
G1/2" |
G1/4" |
|
|
代号 |
DN |
d1 |
d2 |
d3 |
d4 |
n |
代号 |
DN |
d1 |
d2 |
d3 |
d4 |
n |
2BE1 102
2BE1 103 |
N1.0
N2.0 |
50 |
18 |
102 |
125 |
165 |
4 |
2BE1 151
2BE1 152
2BE1 153 |
N1.0
N2.0 |
65 |
18 |
122 |
145 |
185 |
4 |
N1.1
N2.2 |
65 |
18 |
122 |
145 |
185 |
4 |
N1.1
N2.2 |
100 |
18 |
158 |
180 |
220 |
8 |
|
|
